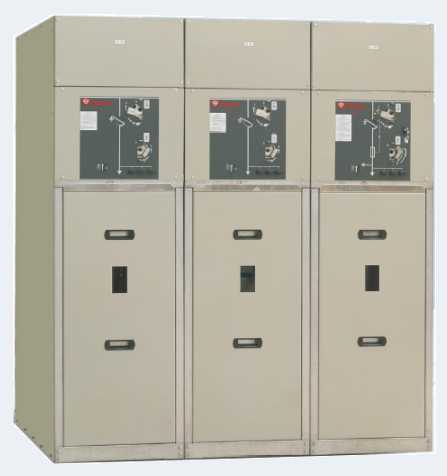

EFACEC offers a verstile range of metal enclosed medium voltage swithgear. The Normafix range is modular and air insulated switchgear.

The Compact and modular construction offers versatility and the ability to address many configurations for example 3, 4, 5, 6 & 7 ways etc. The option of either switch disconnector load interrupter switch or circuit breaker is suitable for most applications including isolation of cables, transformer isolation and protection. The compact design offers substantial space savings.

Rating:
System Volage : 24kV 36kV
Lighting impulse : 1125kV 170kV
Current : 630A 630A
Short Circuit : 16kA (3S) 16kA (3S)
Making capacity : 40kAPeak 31.5-40kA (Peak)
