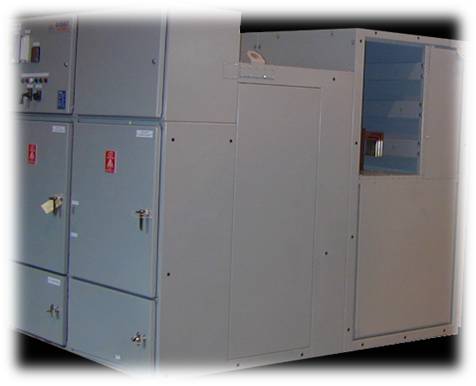

M-Vac MV Switchgear
The M-Vac Switchgear was designed to meet stringent international standards and type tested according to IEC 62271. The high end metal clad switchgear was designed by GEDAC engineers with a high degree of operator safety, internal arc protection and pressure relief vents. M-Vac is designed with full segregation of the circuit breaker compartment and equipped with a Power Vac Vacuum Circuit Breaker.
The Salient Features of GEDAC MV IEC Switchgear are :
- Front operated Earth Switch with Mech. Interlock
- Voltage Level = 17.5KV
- Current = 3150 A Rated at 50oC
- Short Circuit Rating = Withstand 40KA for 3 s, momentary 104KA for 0.3 s
- Internal ARC = 31.5KA for 0.5 s, IAC, AF (Front accessibility) IP3XD; Partition = IP3XD Fully Metal Clad
