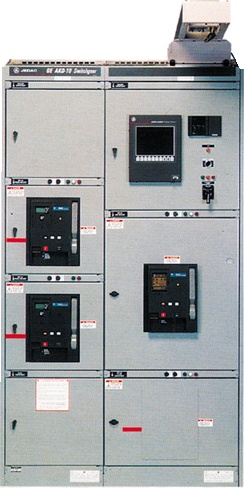

AKD-10 & 20 LV Switchgear



The GE designed AKD range of switchgear is industrial-duty equipment built to ANSI standards and the AKD-10 uses the WavePro range of LV circuit breakers and the AKD-20 uses the Entelliguard range of LV circuit breakers. The AKD range of switchgear is designed to provide maximum continuity of service for applications subject to severe duty. The switchgear conform to ANSI C37.51 and the bolted modular-designed steel frame permits flexibility in arrangement of breakers and associated components.




  • Reduced installation area
  • Modular and compact design extensible
  • Continuous current from 800A to 5000A
  • Fault interruption ratings up to 150kAIC
  • NEMA 1,2,12 & 3R
  • True closed-door draw-out construction
  • Selectivity & Arc flash protection
  • EntelliGuard® GE circuit breakers
  • Trip unit with superior circuit protection
  • Optimized footprints (22", 30" or 38" widths)
  • Insulated and isolated bus bars
  • An easy to read metal instrument panel
